LED Backlight Sheets for Casino Photo Displays in Ahmedabad

A casino photo display can look bright at the edges, dull in the centre, or uneven across faces when the light-guide sheet, LEDs, film, and enclosure are specified separately. You will be able to choose the optical layout, provide production-ready measurements, specify measurable LED performance, and approve a sample that survives Ahmedabad’s heat, dust, and demanding interior lighting.

Key takeaways

Choose edge-lit for slim frames; choose direct-lit when large-image uniformity matters most.
Give the fabricator finished size, viewing distance, image area, depth, and cable-entry locations.
Test brightness, colour consistency, hotspots, flicker, and heat at the intended operating temperature.
Approve a full-size illuminated sample before ordering production units.

Choose the Optical Architecture Before Choosing the Sheet

Choose edge-lit for a slim casino photo frame viewed at close or moderate distance; choose direct-lit for a large image where uniformity matters more than minimum depth.

Option	Optical path	Best fit
Edge-lit	LEDs enter a polished LGP edge; total internal reflection in PMMA or polycarbonate carries light until extractor dots, molded structures, or laser-etched patterns release it	Slim frame, smaller image, lower cavity depth, easier front access
Direct-lit	LED strips or modules shine through a reflector, mixing cavity, diffuser, and printed graphic	Large image, longer viewing distance, stronger uniformity, deeper housing and easier rear service

Edge-lit construction reduces enclosure depth and heat, but requires tighter LED pitch, careful coupling, and pattern density that increases away from the injection edge. Direct-lit construction needs greater LED-to-diffuser distance; tighter pitch improves uniformity but increases LED count, power draw, heat, and driver capacity.

A plain clear acrylic sheet is not an LGP. It usually creates bright edges and a dark centre.

Build the assembly from rear housing, serviceable driver, LED strips or modules, LGP, diffuser, backlit graphic, protective front layer, and frame. Use an LED backlight sheet for casino displays in Ahmedabad when thinness matters; use a deeper direct-lit box for large photographs, where dark centres and visible hotspots are unacceptable.

Give the Fabricator Measurements That Prevent Rework

Prevent rework by sending the fabricator a dimensioned drawing before ordering a casino photo frame backlight in Ahmedabad. Include:

1. Visible image area, overall panel dimensions, clear border, LGP thickness, graphic thickness, protective-layer thickness, corner radius, and frame depth.

2. Internal rebate width, height, and depth—not only the frame’s outside size. For an existing frame, measure usable cavity depth and the distance from LEDs to the diffuser and from diffuser to graphic.

3. LED injection edge for an edge-lit sheet, or module layout and pitch for direct-lit construction. Mark mounting method, fixing-point coordinates, ventilation openings, and cable-exit position.

4. Request confirmation that every coupling edge is CNC-finished and polished. Saw-cut, chipped, rough, or flame-damaged edges scatter light and reduce injection efficiency.

5. Keep protective masking on during cutting and fabrication. Remove it for optical inspection of a full trial fit.

6. Run the trial at operating brightness and check for exposed LED points, bright corners, dark far edges, hot spots, visible edge-injection marks, bowing, trapped dust, and interference with clips or glazing. Reject the fit until the graphic, diffuser, LGP, and frame seat without pressure or gaps.

Match the LGP, Diffuser, Graphic, and Front Surface

Keep the stack optically balanced: the LGP extracts light, the diffuser smooths it, the graphic controls colour, and the front surface protects the image without reflecting the room.

Layer	Function	Failure if mismatched
LGP	Redirects edge-entered light through extraction dots, molded structures, or laser-etched patterns	Bright edges and a dark centre
LED diffuser sheet	Spreads or softens light from the backlight	Cannot fix poor LED coupling or a bad extractor pattern
Graphic film	Transmits the intended photograph	Washed colour, grain, banding, or translucent patches
Front surface	Protects the print and controls glare	Reflections from slot-machine lights, signage, or ceiling fixtures

Use both an LGP and diffuser when extraction looks uneven or the photograph needs a smoother light field. An LED light guide sheet for displays in Ahmedabad should use a polished coupling edge; a diffuser alone cannot compensate for rough edges or badly spaced LEDs.

Choose PMMA for high optical clarity and lower yellowing tendency than many general plastics. Choose polycarbonate when impact resistance matters, then check its heat exposure, internal stress, optical transmission, and UV conditions.

Specify translucent backlit-printing film, not ordinary paper or front-lit photographic film. Inspect a full-size sample for dark shadows, blocked highlights, colour shifts, grain, banding, and translucent patches. Compare glossy acrylic, glass, and protective overlays under the actual fixtures; glare requires surface and installation control, not diffusion alone.

Write a Performance Specification That Can Be Tested

Specify luminance in cd/m², measured after 30 minutes at operating temperature with the diffuser, graphic, and front layer installed. Use a grid covering the actual visible aperture, not the centre alone, and define uniformity as minimum luminance ÷ maximum luminance × 100: accept at least 80%, or 85–90% for faces, gradients, and large white areas.

Request these figures in the quotation:

Target luminance: stated cd/m² at normal drive current
CCT: agreed target, such as 5000 K ±300 K
Colour rendering: CRI Ra ≥90, or a written rendering requirement for skin tones and artwork
Viewing angle: measured half-brightness angle, such as ≥120°
Input power: total watts and watts per square metre
LED pitch: centre-to-centre spacing in millimetres
Driver efficiency: percentage at the specified load

Extractor density normally needs to increase away from the injection edge. One uniform dot pattern leaves a bright perimeter and dark far edge.

LED pitch and mixing distance are linked:

Pitch	Effect
Tighter	Better uniformity; more LEDs, heat, driver capacity, and cost
Wider	Lower cost; greater mixing distance and deeper enclosure needed

State PWM, analogue, or other dimming control, then request a rolling-shutter camera test for bands. Match the driver to forward-voltage range, current, dimming, power factor, and thermal conditions—not merely 12 V or 24 V.

Approve a Full-Size Sample Before Ordering Production Units

Require a full-size physical sample before accepting a quotation from a backlit display sheet supplier in ahmedabad. The sample must use the intended sheet size, LED arrangement, diffuser stack, drive current, frame depth, and final backlit artwork. A small mock-up can conceal long-edge fall-off, corner darkening, LED hot spots, thermal colour drift, and film artefacts.

Clear aperture, visible border, LGP thickness, and LED entry edge
Backlit film type, target luminance in cd/m², CCT, and CRI
Uniformity formula, such as minimum luminance ÷ maximum luminance × 100, plus the measurement grid across the actual aperture
Dimming method, operating hours, indoor exposure conditions, and warranty exclusions

2. Measure the sample after warm-up at its intended drive level. Record brightness at the centre, each corner, near-edge zones, and the far edge; reject results based only on LED count, watts per metre, or a catalogue label.

3. Use SUN ACRYLAM PVT. LTD. when one build requires cut and polished optical edges, a custom frame, fabricated or engraved components, and a rear housing that technicians can open without damaging the graphic. Approve multiple casino displays only after the measured sample passes.

Related products

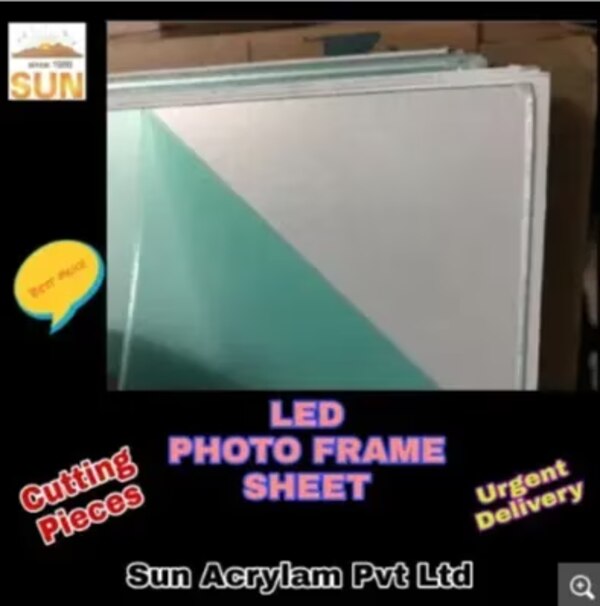

LGP Sheet Led Photo Frame Sheet

Led Photo Frame Backlight Sheet

View product →

Cutting Services

Backlit Display Sign Board

View product →

Design for Ahmedabad Heat, Dust, Cables, and Future Service

A reliable display starts with a serviceable rear housing, not a sealed box. Use a removable panel, keep the driver accessible, add strain relief at the cable exit, and protect ventilation openings with a dust barrier or filtered labyrinth path. Leave clearance for cable bends and driver removal.

Check the actual ambient temperature with air-conditioning off, especially inside enclosed casino zones. Measure LED junction temperature or module temperature at normal drive level; acrylic face temperature alone cannot predict lumen maintenance or colour shift.

Use this installation checklist:

Mount the LGP with retainers that locate it without compression, bowing, or point loading.
Record operating hours, cleaning chemicals, inspection intervals, and access routes for LED strips, modules, drivers, diffuser layers, and printed graphics.
After warm-up, inspect luminance and colour at the normal drive level. Repeat both checks after thermal stabilisation.
Match LED bins, drive current, graphic material, white point, and colour-rendering performance across every frame.
Specify a driver for the LED forward-voltage range, current, dimming method, power factor, and measured enclosure temperature—not merely “12 V” or “24 V.”
Keep replacement parts removable without dismantling the frame or damaging the graphic.

Dust, heat, trapped cables, and mismatched LEDs become visible as darkening, colour drift, or uneven photographs long before the panel stops lighting.

Frequently asked questions

When should you choose edge-lit or direct-lit architecture?
Choose edge-lit for a slim casino photo frame viewed at close or moderate distance. Choose direct-lit for a large image where uniformity matters more than minimum depth.
What measurements should you give a fabricator?
Provide the finished outer size, visible image area, viewing distance, frame depth, material thickness, mounting method, cable-entry locations, and service-access requirements.
How do you match the LGP, diffuser, graphic, and front surface?
Specify the light guide plate, diffuser, graphic film, and front cover as one optical stack. Check transmission, thickness, surface finish, colour, and hotspot risk together.
What should a backlight performance specification measure?
Define luminance, uniformity, colour consistency, flicker, power consumption, operating temperature, viewing angle, and acceptable tolerances so the supplier can test each unit.
Why approve a full-size sample before production?
A full-size sample reveals edge brightening, dark zones, moiré, graphic colour shifts, reflections, frame gaps, cable problems, and service-access issues before quantity production.
