A blind plastic washer is not a standard flat washer with a different name: its centre is closed, recessed, or covered on one side, so the geometry must match the fastener and panel. By the end, you will know how to describe the part, compare Ahmedabad suppliers, request a useful quotation, and approve a sample before ordering production quantity.
Key takeaways
- Confirm blind-hole depth and bottom thickness on a drawing.
- Specify material, dimensions, tolerance, load, temperature, and chemical exposure.
- Compare cutting, machining, and moulding against quantity and repeatability.
- Approve a measured sample before releasing the production order.
Confirm What “Blind Plastic Washer” Means Before You Search
A blind plastic washer has a closed or covered centre: the fastener enters a blind hole but does not pass through the part. Confirm the blind-hole depth and remaining bottom thickness on a drawing; “blind washer” is not a universal product name.
| Part | How it differs | Wrong assumption to avoid |
|---|---|---|
| Standard flat washer | Through-hole with no closed end | It will not cover or isolate the fastener opening |
| Spacer washer | Through-hole designed to maintain a gap | It does not provide a closed bottom |
| Plug or cap | Usually closes an opening without carrying a fastener | It is not automatically a washer or load spreader |
| Sealing washer | Uses material or geometry to limit leakage | A blind washer is not automatically pressure-tight |
| Flange washer | Includes an extended outer flange | A larger outside diameter does not prove blind geometry |
1. Decide the function before searching: cover a fastener, isolate it from a finished panel, improve appearance, or protect an exposed hole from dust or moisture where the design permits.
2. Search “plastic blind washers near me” for local leads, then add the required process and polymer, such as “custom POM blind-hole washers CNC” or “nylon insulating washers.” Send a drawing or sample because listings may not show the required recess.
3. Reject the blind washer when you need a structural load-spreading washer, a threaded insert, a panel plug, or a verified pressure seal. Acrylic is also a poor automatic choice for high tightening force, impact, or repeated assembly because it is relatively brittle.
Specify the Geometry, Material, and Service Conditions
Send a drawing, not only the bolt diameter. State the outside diameter, overall thickness, centre opening or recess diameter, blind depth, closed-end thickness, corner radii, chamfers, and any countersink or retaining lip. Mark every dimension with its tolerance.
DIN 125, ISO 7089, DIN 9021, and ISO 7093 describe through-hole flat washers, not a custom blind profile.
Give the supplier these details:
- Fastener size and head shape, plus the required clearance or interference
- Mating-panel thickness and hole diameter
- Whether the closed face must sit flush, stand proud, or cover the opening completely
- Required surface finish, colour, transparency, burr limit, and cleanliness
- Quantity, expected repeat orders, and whether dimensions must be inspected dry or after conditioning
Choose the polymer from the service conditions, not appearance. Nylon suits economical insulating parts, but it absorbs more moisture than acetal, polypropylene, or PTFE and can change dimension in humid service.
Ask an industrial plastic washer supplier in ahmedabad which engineering polymer fits your electrical, chemical, temperature, and moisture exposure; decorative acrylic is not automatically suitable for a loaded joint.
State the continuous and peak temperature, chemicals, UV exposure, installation method, fastener torque, compressive load, load duration, and mating-surface materials. Plastic under sustained compression can creep and reduce clamp force, so a washer that fits during assembly can loosen later.
Ask for the proposed material grade, dimensional tolerances, blind-depth inspection method, and batch-to-batch repeatability before accepting a quotation.
Compare Cutting, Machining, and Moulding Before Comparing Prices
Ask for separate quotes for machining, moulding, and any two-piece fabrication; do not compare a laser-cut price with a machined blind washer as if they were equivalent. A laser-cut sheet profile produces a through-opening, not a closed-bottom recess. If the centre must remain covered, confirm machining, moulding, lamination, or an assembled design.
| Process | Best fit | Main trade-off |
|---|---|---|
| CNC machining | Prototype to medium quantities, tight blind-hole depth and diameter tolerances | Higher piece cost, but easy design changes and no mould tool |
| Injection moulding | Large repeat orders with stable geometry and moderate production tolerances | Tooling, setup, and minimum economical quantity can dominate early cost |
| Sheet cutting or two-piece fabrication | Flat washers, cosmetic covers, or designs that permit assembly | Cannot create a blind recess in one cut part; joints and bottom thickness need validation |
Choose POM for low-friction, dimensionally stable parts, nylon for tough insulating components, and polypropylene when chemical resistance and flexibility matter. Use acrylic for appearance or panel protection, not automatically for an engineering load or heat requirement.
Send the drawing with material grade, outside diameter, blind-hole diameter and depth, remaining bottom thickness, overall thickness, quantity, colour, and tolerances. Request separate tooling, setup, first-article, and recurring-piece charges, plus batch-wise inspection records.
A search for “blind washer manufacturer in gujarat” is only a geographic lead. Confirm in-house production, available bar or sheet sizes, measurement equipment, and repeatability before accepting the lowest quote.
How to Qualify a Blind Plastic Washer Supplier in Ahmedabad
A dependable quotation identifies the polymer, process, dimensions, tolerances, quantity, and inspection method. Ask whether the Ahmedabad work is produced in-house or outsourced, and whether the supplier has machined blind depths repeatedly rather than making one successful sample.
Send these questions to a blind plastic washer supplier in Ahmedabad:
- Can you supply POM, nylon, PTFE, polycarbonate, or another engineering polymer, not only acrylic?
- What sheet thicknesses or bar sizes do you hold, and which process will make this geometry?
- How will you control blind depth, bottom-wall thickness, burrs, and permitted flash?
- What measuring equipment checks the part, and will you provide batch-wise inspection records?
- What are the minimum quantity, tooling charge, lead time, packaging method, and rejection terms?
A drawing with revision number, material grade, hardness or electrical requirement, all tolerances, and the required quantity makes the price comparable. Request the material datasheet or certificate of conformity, a dimensional inspection report, and the sample-approval procedure. For a compression joint, include fastener torque or load, temperature, duration, and mating surfaces.
| Check | Weak quotation | Dependable quotation |
|---|---|---|
| Geometry | Outside diameter only | Blind depth, bottom thickness, hole profile, and tolerances |
| Production | “Custom plastic” | CNC, die, or laser route with stated size limits |
| Repeatability | One fitting sample | Batch plan, gauges, inspection frequency, and records |
| Supply chain | Unstated origin | Ahmedabad production location and outsourcing disclosure |
SUN ACRYLAM PVT. LTD. belongs in your comparison only after it confirms the quoted polymer, blind-depth capability, and batch inspection documents. A listing found through “plastic blind washers near me” is a lead, not proof of manufacturing capability.
Related products

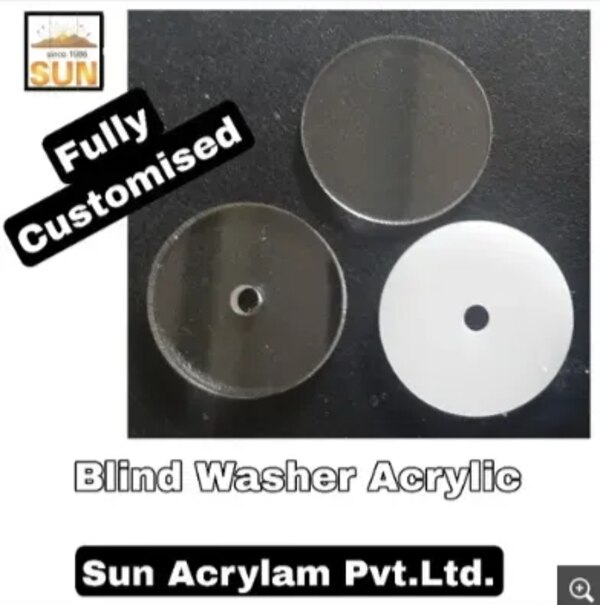

 | Washers Blind Washer Plastic View product → |
 | Plastic Washers Plastic Washer Customised View product → |
Approve the Sample Before You Release the Order
Do not release the production order until the sample passes the drawing, the assembly test, and a repeatability check. Approve a signed sample or marked reference part, not a verbal description.
1. Compare the sample with the drawing. Measure outside diameter, inside or blind-hole diameter, overall thickness, blind-hole depth, remaining bottom thickness, and any counterbore or countersink using calibrated calipers, micrometers, depth gauges, or pin gauges. Record each result against the stated tolerance.
2. Trial-fit it on the actual panel, fastener, or mating component. Check that it seats fully, covers the opening, leaves the required clearance, and does not contact a finished surface where isolation is required. A single successful fit does not prove production capability.
3. Inspect the finish under good light. Reject parts with burrs, cracks, sharp edges, warping, colour variation outside the approved sample, tool marks that affect seating, or a distorted blind cavity.
4. Turn the washer cavity downward and check for chips, dust, liquid, or release agent. Define “blind cavity open and clean” in the purchase order, along with packaging that prevents contamination.
5. Ask for multiple samples from the intended process, then compare their measurements. Before buying quantity, obtain the inspection plan and batch-wise inspection records from the blind washer manufacturer in Gujarat.
The search phrase “plastic blind washers near me” finds local listings, not verified capability. Confirm in-house production, polymer grade, available sizes, and consistent blind-depth control before approval.
Frequently asked questions
What does “blind plastic washer” mean?
It describes a washer with a closed or covered centre, where the fastener enters a blind hole but does not pass through. Confirm the hole depth and remaining bottom thickness on a drawing because the term is not universal.
What details should you give a blind plastic washer supplier?
Provide a drawing with outer diameter, inner or blind-hole diameter, hole depth, overall thickness, bottom thickness, tolerance, material, quantity, and service conditions such as load, temperature, and chemical exposure.
Which manufacturing method is best for blind plastic washers?
Cutting suits simple profiles and prototypes, machining suits precise low-volume parts, and moulding suits repeat production after tooling investment. Compare total cost, tolerance, finish, lead time, and expected quantity.
How do you qualify a blind washer manufacturer in Gujarat?
Ask for relevant sample parts, material identification, dimensional inspection records, production capacity, tooling ownership, tolerance capability, and packaging controls. Check that the supplier can reproduce the blind-hole depth and bottom thickness.
